LIHC1030 High Energy Hybrid Capacitor 120F 3.8V 900mA Fast Charge 5μA Leakage
General Specifications
Rated capacitance at 25±3°C is 120F, measured between 3.8V and 2.5V. Nominal voltage is 3.8V. Operating voltage spans 2.5V to 3.8V. Maximum charging voltage is 4.2V. DCR is ≤250mΩ at 4.2V with 10ms pulse. ACR is ≤100mΩ at 1kHz and 3.6V. Continuous discharge current is 500mA. Pulse discharge current (<1s) is 6.0A. Maximum charge current is 900mA. Leakage current is ≤5.0μA after 72h at 25°C. Operating temperature is -40°C to 65°C. Storage temperature is 10°C to 40°C.

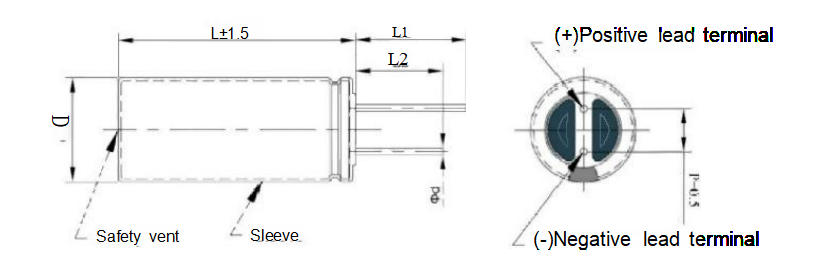

Physical Dimensions
Diameter ΦD is 10mm with +0.5mm maximum. Length L is 30±1.5mm. Lead length L1 is 26.5±1.0mm and L2 is 20.5±1.0mm. Lead diameter Φd is 0.6±0.1mm. Lead pitch P is 5±0.5mm. Weight is ≤4.5 grams. The cylindrical aluminum shell provides mechanical protection and sealing. The rubber plug prevents short circuits and electrolyte leakage.
Cycle Life Characteristics
Cycle life exceeds 250,000 cycles under 10C charge/discharge between 3.7V and 3.1V at room temperature. After 250,000 cycles, capacitance retention is at least 70 percent of initial value and internal resistance remains within 4 times the initial specified value.
Temperature Performance
At -20°C, capacitance retention is ≥70% of initial value and internal resistance ≤10 times initial specified value. At +65°C, capacitance change stays within ±10 percent of initial value and internal resistance remains within initial limits. High temperature and high humidity storage (60±3°C, 90±3% RH for 1000 hours) results in capacitance ≥70% and internal resistance ≤2 times initial value. High temperature float test at 65°C and 3.8V for 1000 hours maintains capacitance ≥70% and resistance ≤4 times initial value.
Product dimensions
| Series | ①D(mm) | L(mm) | L1(mm) | L2(mm) | ①d(mm) | P(mm) | Weight(g) |
| LIHC 1030 3R8120F | 10+0.5 Max | 30±1.5 | 26.5±1.0 | 20.5±1.0 | 0.6±0.1 | 5±0.5 | ≤4.5 |
Product technical index
| Item | Specification | Condition | Note |
| 1 | Operating temperature | -40℃~65℃ | / |
| 2 | Operating voltage | 2.5V~3.8V | / |
| 3 | Nominal voltage | 3.8V | / |
| 4 | Max charging voltage | 4.2V | / |
| 5 | Rated capacitance(@25±3℃) | 120F | Measured between 3.8V and 2.5V |
| 6 | DCR | ≤250mΩ | Measured at 4.2V,25±3℃,10 ms |
| 7 | ACR | ≤100mΩ | 1kHz,3.6V@25±3℃ |
| 8 | Continuous discharge current | 500mA | / |
| 9 | Pulse discharge current(<1s) | 6.0A | / |
| 10 | Max charge current | 900mA | / |
| 11 | Leakage current | ≤5.0μA | After 72 h at 25℃ |
| 12 | Cycle life | Capacitance retention≥70% after 250,000 cycles | / |
| 13 | Storage temperature | 10℃~40℃ | / |
Technical information
| Item | Project | Properties |
| 1 | High-and low-temperature characteristic | Capacity(-20℃):≥70%of initial measured value Internal resistance (-20℃):≤10 times the initial specifed value Capacity retention at+65℃:within ±10%of the initial value Internal resistance at+65℃:within the specified initial value |
| 2 | High temperature and high humility storage properties | High temperature and high humility storage properties Internal resistance:≤2 times the initial specified value |
| 3 | Charge/discharge cycling properties | Capacitance:≥70%of initial measured value Internal resistance:≤4 times the intial specified value |
| 4 | Floating test at high temperature | Capacitance:≥70%of intial measured value Internal resistance:≤4 times the initial specified value |
