LIHC1016 250k Cycle LIHC Capacitor 3.8V 50F -40°C to 65°C 4A Pulse 200mA Continuous
Scope
This specification describes the characteristics,test methods,and precautions of the ECOLTOLIHC Series (Lithium-ion Hybrid Capacitors).
Basis standard
This product is developed based on ECOLTO internal standards,with reference to:

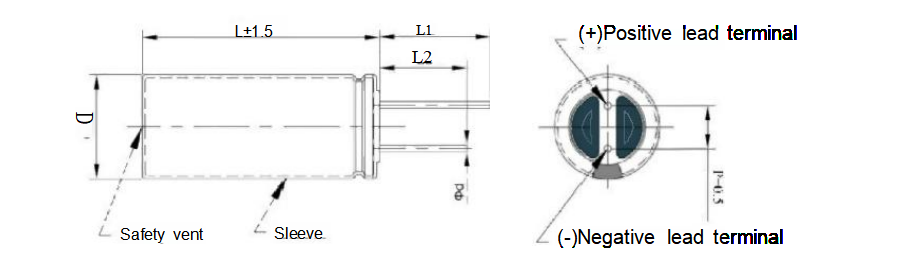

Product dimensions
| Series | ①D(mm) | L(mm) | L1(mm) | L2(mm) | ①d(mm) | P(mm) | Weight(g) |
| LIHC 1016 3R850F | 10+0.5 Max | 16±1.5 | 27±1.0 | 21±1.0 | 0.6±0.1 | 5±0.5 | ≤3.0 |
Product technical index
| Item | Specification | Condition | Note |
| 1 | Operating temperature | -40℃~65℃ | / |
| 2 | Operating voltage | 2.5V~3.8V | / |
| 3 | Nominal voltage | 3.8V | / |
| 4 | Max charging voltage | 4.2V | / |
| 5 | Rated capacitance(@25±3℃) | 50F | Measured between 3.8V and 2.5V |
| 6 | DCR | ≤400mΩ | Measured at 4.2V,25±3℃,10 ms |
| 7 | ACR | ≤175mΩ | 1kHz,3.6V@25±3℃ |
| 8 | Continuous discharge current | 200mA | / |
| 9 | Pulse discharge current(<1s) | 4.0A | / |
| 10 | Max charge current | 400mA | / |
| 11 | Leakage current | ≤4.0μA | After 72 h at 25℃ |
| 12 | Cycle life | Capacitance retention≥70% after 250,000 cycles | / |
| 13 | Storage temperature | 10℃~40℃ | / |
Technical information
| Item | Project | Properties |
| 1 | High-and low-temperature characteristic | Capacity(-20℃):≥70%of initial measured value Internal resistance (-20℃):≤10 times the initial specifed value Capacity retention at+65℃:within ±10%of the initial value Internal resistance at+65℃:within the specified initial value |
| 2 | High temperature and high humility storage properties | Capacitance:≥70%of initial measured value Internal resistance:≤2 times the initial specified value |
| 3 | Charge/discharge cycling properties | Capacitance:≥70%of initial measured value Internal resistance:≤4 times the intial specified value |
| 4 | Floating test at high temperature | Capacitance:≥70%of intial measured value Internal resistance:≤4 times the initial specified value |
Why Do IoT Devices Fail Prematurely?
Most IoT sensors and wireless modules die not because the electronics fail, but because their power source gives out. Small batteries can't handle burst transmissions. EDLCs don't store enough energy. What you need is something between a battery and a capacitor—something that delivers high pulse current, lasts hundreds of thousands of cycles, and doesn't leak energy when idle.
The LIHC1016-3R8-50F Is That Solution
This 3.8V 50F lithium-ion hybrid capacitor stores just enough energy for backup and burst applications, discharges at 4.0A when you need it, and recharges at 400mA without degrading. It runs for 250,000 cycles. It works from -40°C to 65°C. It holds its charge with less than 4μA leakage. And it fits in a 10x16mm cylinder weighing 3 grams.
When to Use It
Smart meters that wake up once an hour to transmit data. GPS trackers that send location pings. Wireless sensors that log temperature and humidity. Backup power for real-time clocks and memory retention. Peak power support for industrial controllers. Any application that needs a quick burst of energy, repeated thousands of times, over years of service.
Technical Data
50F capacitance measured between 3.8V and 2.5V. DCR ≤400mΩ. ACR ≤175mΩ. 200mA continuous. 4.0A pulse. 400mA max charge. 4μA leakage. -40°C to 65°C operating. 10°C to 40°C storage. Shipped at 3.3V to 3.8V. Passes overcharge, short circuit, thermal, and mechanical abuse tests with no fire or explosion.
Bottom Line
If your device needs long life, wide temperature range, and reliable pulse power, the LIHC1016-3R8-50F is the component you're looking for. It outlasts batteries. It outperforms EDLCs. It's maintenance-free. And it's ready to ship.
