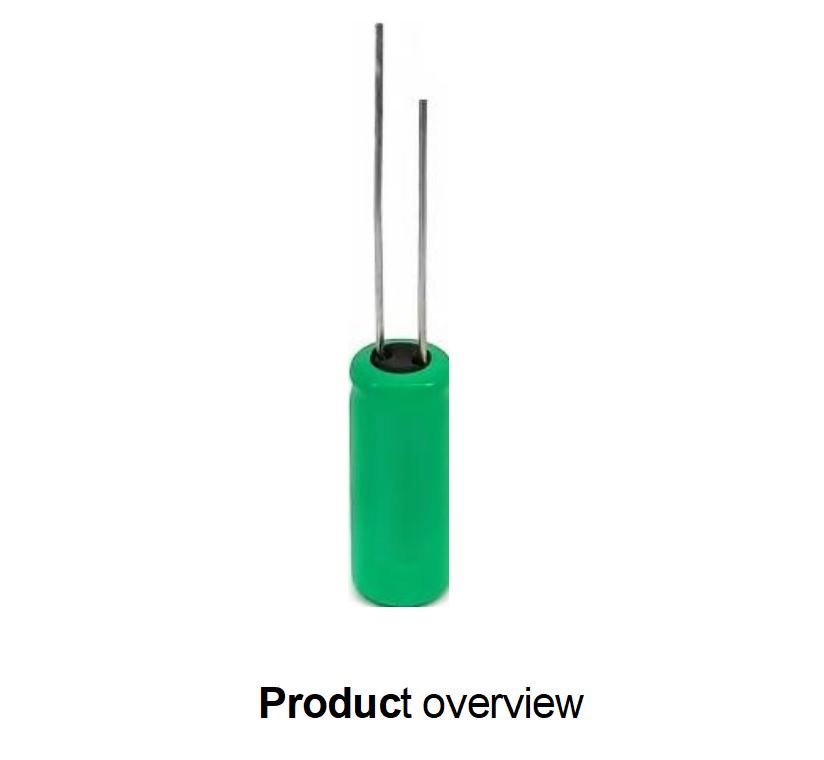

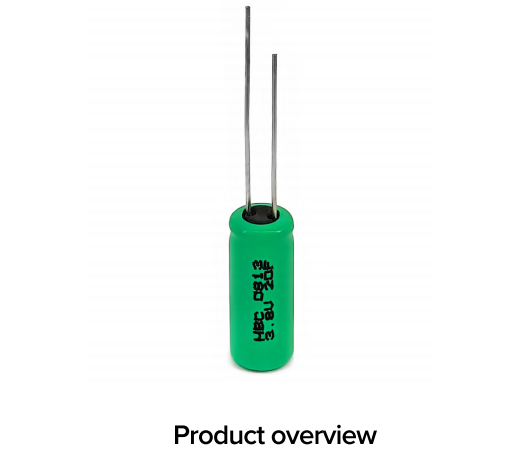

Product Overview & Key Features
The LIHC0813-3R8-20F is a high-performance 3.8V 20F Lithium-Ion Hybrid Capacitor (LIHC) that bridges the gap between traditional supercapacitors and lithium batteries. Utilizing a unique hybrid structure, it delivers an exceptional combination of high energy density, rapid power discharge, and an ultra-long lifespan, making it the ideal energy-buffering and backup-power solution for IoT devices, smart meters, and industrial electronics.
High Energy & Power Density: Seamlessly handles peak-current loads with rapid power discharge and extended storage.
Ultra-Long Cycle Life: Engineered to endure over 250,000 cycles, minimizing long-term maintenance and replacement costs.
Low Self-Discharge: Exceptional charge retention, perfect for intermittent power harvesting or long-term standby.
Wide Temperature Range: Operates reliably in harsh environments from -40°C to 70°C.
Safe & Certified: Fully compliant with UN38.3 and MSDS standards for secure international transit and operation.

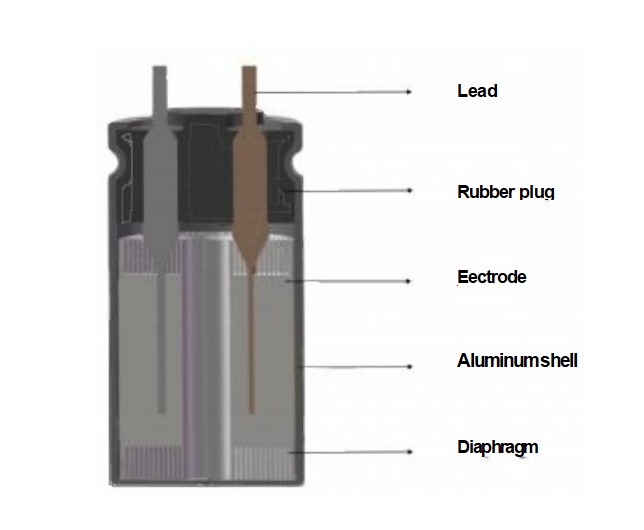

Product structure
Cathode: Activated carbon (capacitive electrode)
Anode: Lithium-ion intercalation material (e.g., graphite)
Separator: Ion-permeable insulating membrane
Electrolyte: Organic electrolyte system
Component Descriptions:
Aluminum Shell: Provides robust mechanical protection and reliable sealing performance.
Electrode: The core material for energy storage, enabling high-performance lithium-ion energy storage through hybrid electrochemical mechanisms.
Diaphragm (Separator): Effectively isolates the positive and negative poles to prevent short circuits caused by direct contact, while allowing the seamless passage of electrolyte ions.
Lead (CP Wire): Tinned copper-clad steel wire featuring high conductivity, excellent bending performance, and superior solderability, serving as the primary bridge for external energy transmission.
Rubber Plug: Formulated from high-grade elastomer material to provide a secure seal and insulation, preventing terminal short-circuits, electrolyte leakage, and evaporation.

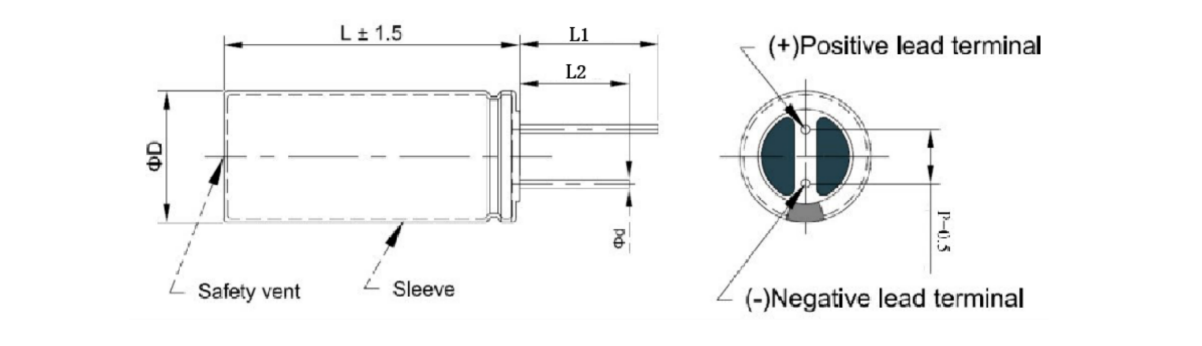

Physical Dimensions and Packaging
The LIHC0813-3R8-20F features a cylindrical aluminum shell that provides robust mechanical protection and excellent sealing performance. The premium rubber plug effectively insulates the terminals from the housing, preventing short circuits, electrolyte leakage, and evaporation.
Key Dimensions:
Body Diameter (ΦD): 8.0 mm (+0.5 mm Max.）
Body Length (L): 13.5 ± 1.5 mm
Lead Pitch (P): 3.5 ± 0.5 mm
Lead Diameter (Φd): 0.6 ± 0.1 mm (using high-conductivity, tinned copper-clad steel CP wire for optimal bending and solderability)
Lead Lengths: L1 = 28.5 ± 1.0 mm, L2 = 22.5 ± 1.0 mm
Unit Weight: ≤ 1.5 g
| Item | ①D(mm) | L(mm) | L1(mm) | L2(mm) | ①d(mm) | P(mm) | Weight(g) |
| LIHC 0813- 3R8-20F | 8+0.5 Max | 13.5±1.5 | 28.5±1.0 | 22.5±1.0 | 0.6±0.1 | 3.5±0.5 | ≤1.5 |
Product technical index
Operating Conditions:
Operating Temperature: -40°C ~ 70°C
Storage Temperature: +10°C ~ 40°C
Operating Voltage Range: 2.5 V ~ 3.8 V
Electrical Performance (@ 25±3°C):
Rated Voltage: 3.8 V
Max Charging Voltage: 3.8 V
Rated Capacity: 20 F (Tested at 3.8 V ~ 2.5 V)
DC Resistance (DCR): ≤ 800 mΩ (3.8 V @ 10 ms)
AC Resistance (ACR): ≤ 400 mΩ (@ 1 kHz, 3.6 V)
Leakage Current: ≤ 2.0 μA (Measured after 72 hours)
Current & Lifespan:
Continuous Discharge Current: 100 mA
Max Discharge Current: 150 mA
Pulse Discharge Current (< 1s): 1500 mA
Cycle Life: ≥ 250,000 cycles
Technical information
| Item | Project | Properties |
| 1 | High-low temperature properties | Internal resistance (-20℃): ≤10 times the initial specified value. Capacity (+65℃): ≥capacity change within ±10% of the initial value. Internal resistance (+65℃): ≤the initial specified value. |
| 2 | High temperature and high humidity storage properties | Capacitance: ≥ 70% of the initial measured value. Internal resistance: ≤ 2 times the initial specified value. |
| 3 | Charge/discharge cycling properties | Capacitance: ≥ 70% of the initial measured value. Internal resistance: ≤ 4 times the initial specified value. |
| 4 | Floating test at high temperature | Capacitance: ≥ 70% of the initial measured value. Internal resistance: ≤ 4 times the initial specified value. |
