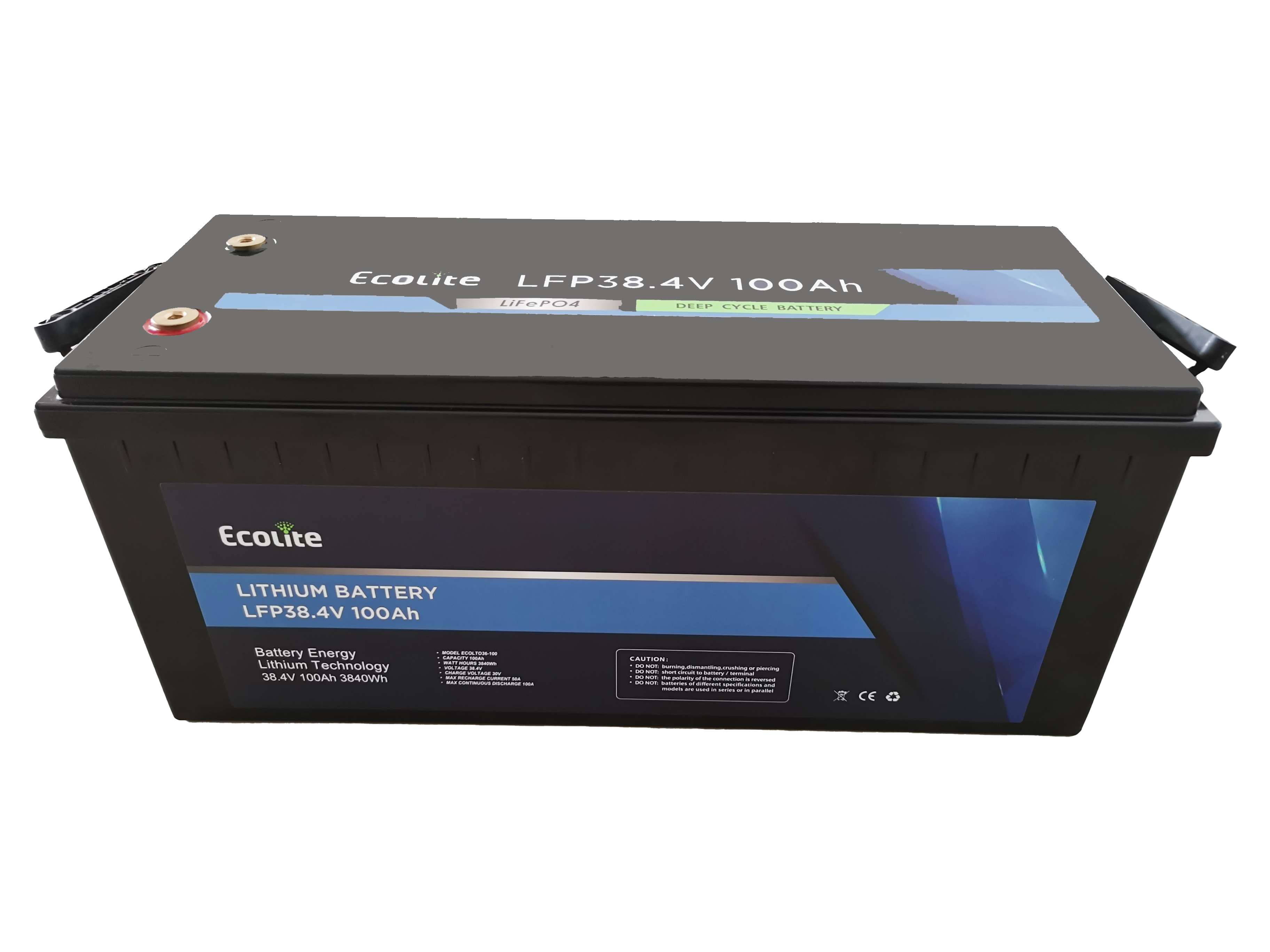

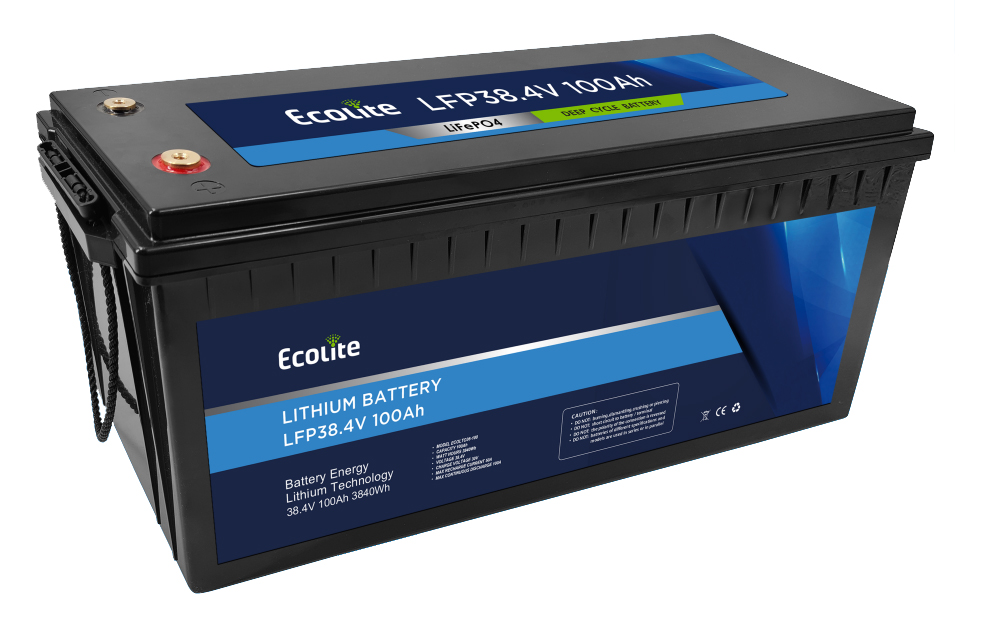

LFP 38.4V 100Ah Rechargeable LiFePo4 Batteries For RV Caravan Power Storage System
FEATURES
Lithium lron Phosphate (LiFePO4). The Safest Lithium Technology.Integrated Battery Management System(BMS),Maximum support 4 in parallel.
PERFORMANCE
Long Cycle Life >3000cycles@ 80%DOD.High Density,High Discharge Current,High Tempera-ture Range.Low Weight,Maintenance Free. Fast Charging.Environmentally Friendly.


| Electrical Parameters | |
| Nomial Voltage | 38.4V |
| Rated Capacity | 100Ah |
| Energy | 3840Wh |
| Resistance | ≤60mΩ |
| Efficiency | ≥0.98 |
| Cycle Life | >3000cycles @1C,80%DOD |
| Self Discharge | <5% per Month |
| Cell in Series/Parallel | 12S/1P |
| MechanicalParameters | |
| Dimension(WxDxH) | 532x207x215mm |
| Dimension(WxDxH) | 20.94x8.15x 8.46" |
| Weight | 27kg |
| Terminal Type | M8 |
| Battery Housing | ABS |
| Housing Protection | IP67 |
| Cell Type-Chemistry | LiFePO4 Cell |
| Communication | Bluetooth |
| Discharge Parameters | |
| Continuous Discharge Current | 100A |
| Pulse Discharge Current | 200A(<1S) |
| Recommended Volt. Disconnect | 30V |
| BMS Discharge Cut-off Voltage | 30V |
| Reconnect Voltage | 32.4V |
| Short Circuit Protection | 300-800us |
| Charge Parameters | |
| Charge Method | CC-CV |
| Charge Voltage | 42.6~43.8V |
| Recommended Float Voltage | 39.9~40.2V@100% |
| Recommended Charge Current | 50A |
| Maximum Charge Current | 100A |
| BMS Charge Cut-off Voltage | 44.4V |
| Temperature Parameters | |
| Discharge Temperature | -20'℃ to 60°C |
| Charge Temperature | 0'C to 55C |
| Storage Temperature | -20'℃ to 60°C |
| BMS High Temperature Cut-off | 65°C |



Hefei ECOLTO Energy is a China leading manufacturer of high-quality lithium batteries, From cells to automated modules to PACK production lines, we provide you with high-quality products. We haveour own intellectual property and full-automatic equipment, to meetdifferent customization needs, and provide you with a one-stopservice.


Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: 1-2 year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
Fill out our short form and we will be contacting you shortly to see we how can provide a solution to your needs!
