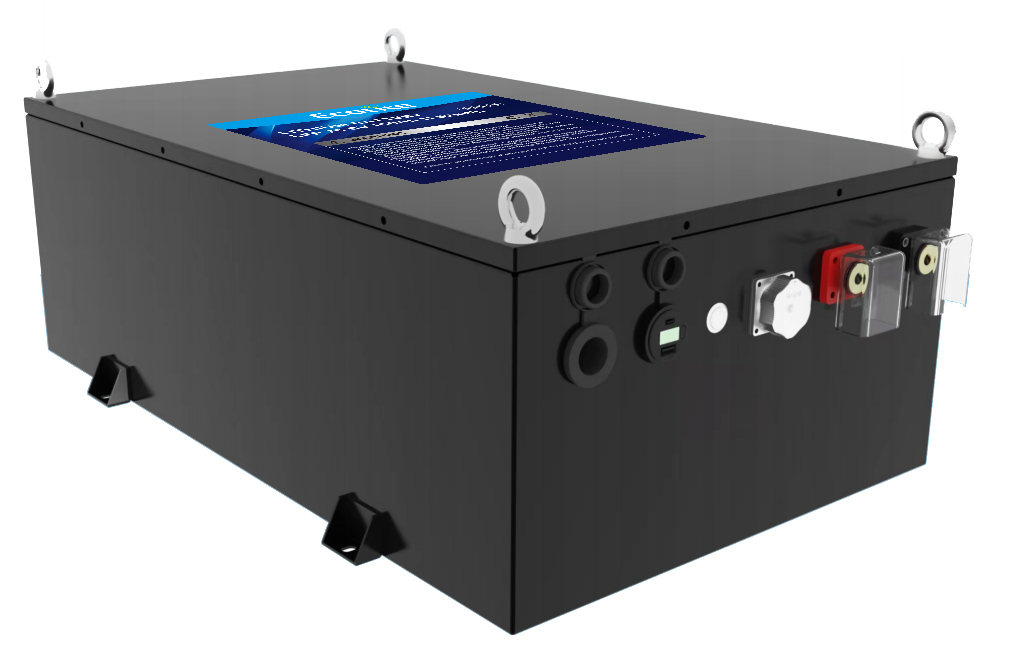

76.8V 150Ah Electric Outboard Boat LiFePO4 Lithium Battery For Marine Boat Yacht
LiFePO4 battery is an excellent option for electric boats due to its high energy density, long cycle life, low self-discharge rate, high discharge rate, fast charging, and safety. It provides a reliable, efficient, and eco-friendly power source for electric boats, allowing them to travel longer distances and operate more smoothly.
Main Battery Features
◆ Longer cycle life, more Powerful
◆ Built-in smart BMS monitor battery state
◆ Extremely safe, no explosion, no fire under collision
◆ Cooling and heating system optional
◆ Customized battery solutions base on yours requirements
◆ Excellent large current discharge performance
◆ Low self-discharge and good discharge performance at low temperatures
Performance
Long Cycle Life >4000cycles,Remaining capacity >80%@25℃,0.5C/0.5,100%DOD.
High Denisity,High Discharge Current,High Temperature Range,Low weight, Free Maintenance.
Fast Charging.
Environment Friendly.
Product Application
Our Marine LiFePO4 battery has a wider range of application and can meet 90% of yacht , tour boat, and speedboat products in the market,According to the size requirements of the ship, we can design and customize the matched lithium battery system.
Electrical Parameters | |
Nominal Voltage | 76.8V |
Rated Capacity | 150Ah |
Energy | 11520Wh |
Resistance | ≤30mΩ |
Efficiency | ≥0.98 |
Cycle Life | >4000cycle@0.5C,80%DOD |
Self Discharge | <3% per Month |
Max Cell in Series/Parallel | 24S/1P |
Mechanical Parameters | |
Dimension(LxWxH) | 660x450x231mm |
Dimension(LxWxH) | 25.98x 17.72x 9.09 |
Weight | 97Kg |
Terminal Type | M8 |
Battery Housing | SPCC |
Housing Protection | IP54 |
Cell Type-Chemistry | LiFePO4 Cell |
Communication | Bluetooth |
Charge Parameters | |
Charge Method | CC-CV |
Charge Voltage | 85.2~87.6v |
Recommended Float Voltage | 79.8~80.4@100% |
Recommended Charge Current | / |
Maximum Charge Current | 50A |
BMS Charge Cut-off Voltage | 88.8V |
Temperature Parameters | |
Discharge Temperature | -20℃ to 60℃ |
Charge Temperature | 0℃ to 55℃ |
Storage Temperature | 0℃ to 35℃ |
BMS High Temperature Cut-off | 65℃ |
