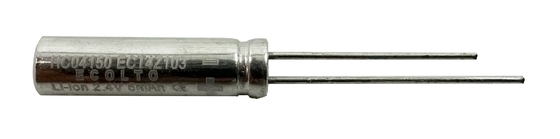

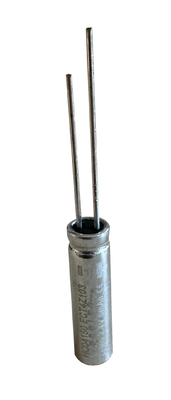

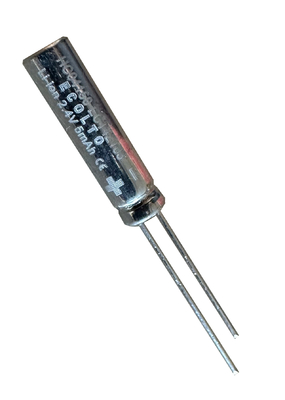

LTO04150-5 Small 2.4V 5mAh LTO Battery Cell | 20C High Discharge Rate Lithium-Titanate
The LTO04150-5 is an ultra-compact, rechargeable lithium-titanate (LTO) cell engineered for applications demanding absolute reliability, a miniature footprint, and an exceptional lifecycle. Designed to thrive where standard lithium-ion batteries fail, this tiny powerhouse delivers dependable energy under the most punishing thermal and mechanical conditions.
Extreme Thermal Resilience: Operates flawlessly across a vast temperature range from -40°C to +100°C, making it perfect for harsh industrial, outdoor, and automotive environments.
Unmatched Cycle Life: Engineered for longevity, it retains ≥80% of its initial capacity even after 25,000 cycles, virtually eliminating the need for battery replacements over the device's lifetime.
High-Rate Discharge: Supports up to a 20C continuous charge and discharge rate (100mA), effortlessly powering high-pulse wireless transmissions and peak loads.
Ultra-Safe Chemistry: Lithium-titanate chemistry is inherently stable, significantly reducing the risks of thermal runaway, shorts, or degradation under high stress.
Typical capacity is 5mAh with a tolerance of -30% to +20%. Nominal voltage is 2.4V. Internal impedance is ≤800mΩ measured at AC 1kHz after standard charge. Charge cut-off voltage is 2.8V. Discharge cut-off voltage is 1.8V. Standard charge and discharge current is 5mA (1C). Maximum charge and discharge current is 100mA (20C). The operating temperature range is -40°C to +100°C. The storage temperature range is -20°C to +70°C.
| NO. | Items | Criteria | Remarks |
| 3.1 | Typical Capacity | 5mAh[-30%， +20%] | 0.05C charge and discharge for the cut-off voltage |
| 3.2 | Nomial Voltage | 2.4V | / |
| 3.3 | Internal Impedance | ≤ 800mΩ | AC 1KHz after standard charge |
| 3.4 | Charge cut-off voltage | 2.8V | / |
| 3.5 | Standard charge current | 5mA | 1C |
| 3.6 | Max continuous charge current | 100mA | 20C |
| 3.7 | Standard discharge current | 5mA | 1C |
| 3.8 | Max continuous discharge current | 100mA | 20C |
| 3.9 | Discharge cut-off voltage | 1.8V | / |
| 3.10 | Temperature | -40~+100℃ | Operating Temp.Range |
| -20~+70℃ | Storage Temp.Range |

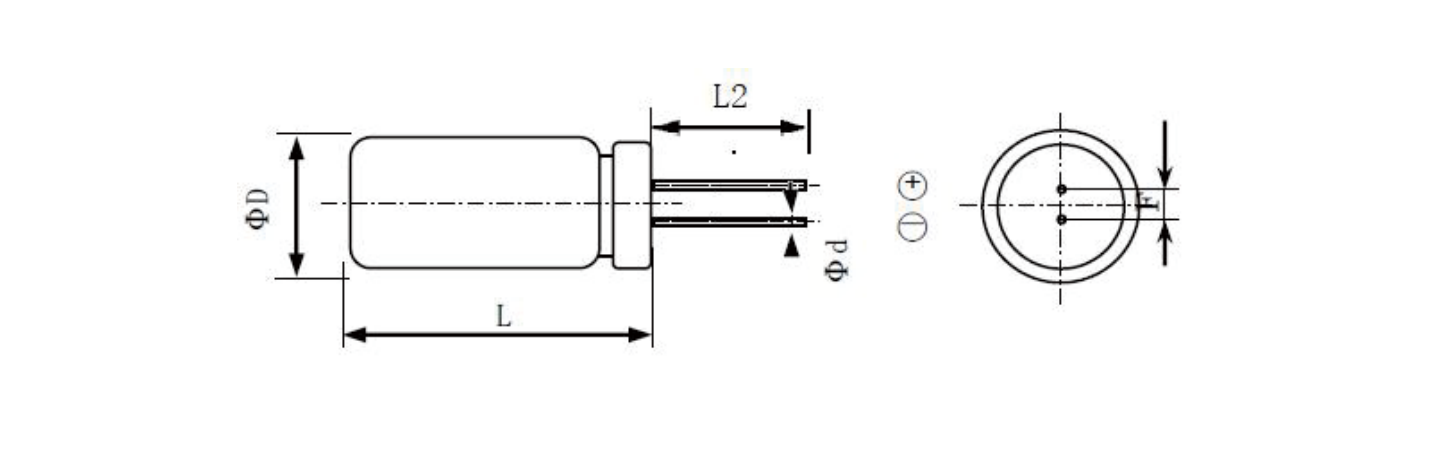

| Dimension | (mm) |
| ФD | 3.9±0.1 |
| L | 15.0±0.5 |
| L2 | 3.0±1.0 |
| Фd | 0.45±0.05 |
| F | 1.6±0.2 |
Unless otherwise specified, all tests stated in this product specification are conducted at below condition: Temperature: 25±3℃ Humidity: 45℃-85%RH
| No. | Items | Test Method and Condition | Criteria | ||||||||||||||||||||||
| 1 | Standard Charge | Charge to 2.5V at constant current 0.5C, then constant voltage charge to taper current 0.05C | Constant voltage 2.5V for 2.0hours in all at 25±2℃ | ||||||||||||||||||||||
| 2 | Capacity | Measure the capacity through a standard charge model and a standard discharge model | 5mAh [-30%,+20%] | ||||||||||||||||||||||
| 3 | Cycle Life | Charge: Standard charge model Discharge: Standard discharge model Repeat the procedures below 25000 cycles | Residual capacity ≥80%after 25000 cycles vs.Discharge capacity of first cycle | ||||||||||||||||||||||
| 4 | Impedance | Internal resistance measured at 1KHz AC | ≤800mohm | ||||||||||||||||||||||
| 5 | Battery Voltage | Measure OCV with a multimeter | 2.2~2.8V | ||||||||||||||||||||||
| 6 | Temperature Performance of Battery | Charge: Standard charge model Discharge:Discharge to1.8V at 0.2C/1c Constant current at-40℃ and 100°℃ respectively | 100℃, Capacity ≥90% | ||||||||||||||||||||||
This sub-miniature 5mAh cell is the ultimate choice for designing decades-long, maintenance-free electronics, including:
IoT & Smart Sensors: Industrial telemetry, environmental monitors, and agricultural sensors.
Wearables & Medical Patches: Low-profile healthcare monitors and smart tracking devices.
Wireless Modules & Beacons: Bluetooth Low Energy (BLE) beacons and localized RF transmitters.
Backup Power: Real-Time Clocks (RTC), memory backup systems, and automotive dashcam fail-safes.
Power that defies extremes. Stop designing around short battery lifecycles. Elevate your next-generation hardware with a power source built for decades. Request your sample today.
It’s the ideal power source for IoT sensors, wearables, and high‑temperature backup. Stop changing batteries. Start designing decades ago. Request your sample today.
Q1: Do you provide free samples?
A: Yes, a few pieces of free samples can be provided, but freight will be charged.
Q2: What is the warranty period for this product?
A: We provide a 1-year warranty from the date of purchase.
Q3: What are your payment terms?
A: We currently accept payments via T/T (Telegraphic Transfer) and L/C (Letter of Credit).
Q4: Do you accept OEM or ODM orders?
A: Yes, we do. We can print your custom logo on the products and provide tailored design solutions for your specialized battery packs or capacitor modules.
Q5: What is your monthly production capacity?
A: Our current production capacity is 1.8 million cells per month, ensuring a stable and reliable supply for large-scale orders.
Q6: What are your shipping and transportation methods?
A: We primarily ship orders by sea for bulk volumes. However, we can also arrange air freight or express delivery (such as DHL, FedEx, or UPS) depending on your urgency, order size, and destination.
Q7: What certifications do your products have?
A: We have obtained UN38.3, MSDS, and other relevant international certifications to ensure safe transportation and usage.
