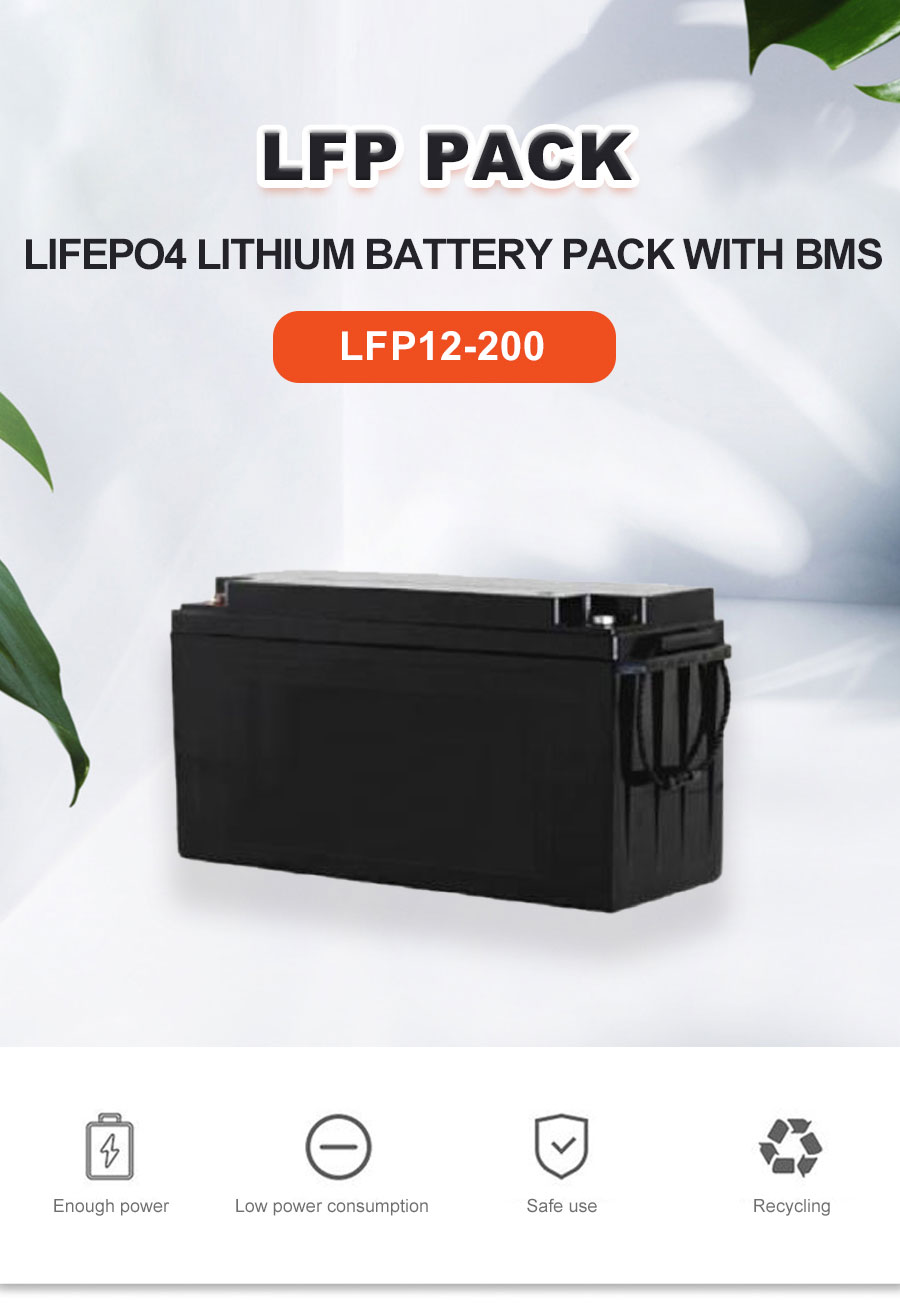

Fast charging 12v 200Ah lifepo4 lithium battery pack with BMS
Electrical Parameters | |
| Nominal Voltage | 12.8V |
| Rated Capacity | 200Ah |
| Energy | 2560Wh |
| Resistance | ≤65mΩ |
| Efficiency | 0.99 |

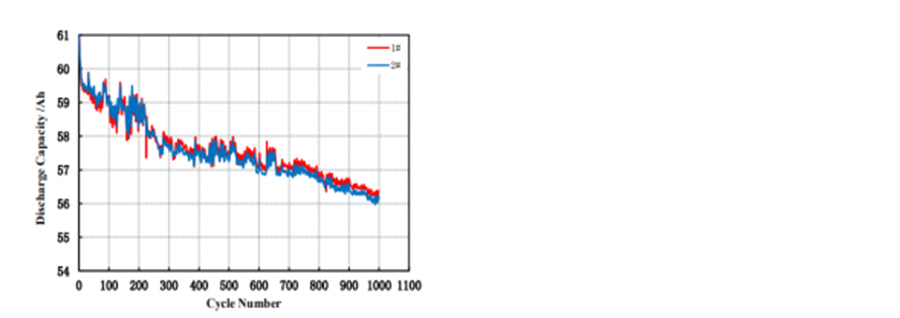

| Cycle Life | >2000cycles @1C,80% DOD |
| Self Discharge | 2% per Month |
| Max. Modules in Series/Parallel | 4S/2P |
Mechanical Parameters | |
| Dimension(L×W×H) | 483x170x240mm |
| 19 x 6.7x 9.4" | |
| Weight | 23kg(50.7bs) |
| Terminal Type | M8 |
| Battery Housing | ABS, LG121 |
| Housing Protection | IP56 |
| Cell Type-Chemistry | LiFePO4 Cell |
| SOC Display(Optional) | / |
Discharge Parameters | |
| Continuous Discharge Current | 120A |
| Pulse Discharge Current | 300A (<30S) |
| Recommended Volt. Disconnect | 10V |
| BMS Discharge Cut-off Voltage | 8.8V |
| Reconnect Voltage | 10.8V |
| Short Circuit Protection | 300-800us |
Charge Parameters | |
| Charge Method | CC-CV |
| Charge Voltage | 14.4~14.8V |
| Recommended Float Voltage | 13.8V |
| Recommended Charge Current | 30A |
| Maximum Charge Current | 120A |
| BMS Charge Cut-off Voltage | 15V |
Temperature Parameters | |
| Discharge Temperature | -20 to 60 ℃ (-4 to 140 ℉ ) |
| Charge Temperature | 0 to 60 ℃ (32 to 140 ℉ ) |
| Storage Temperature | -40 to 70 ℃ (-40 to 158 ℉ ) |
| BMS High Temperature Cut-off | 78 ℃ (172.4 ℉ ) |
NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
See User's Manual for Proper Operation.
Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes，you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
