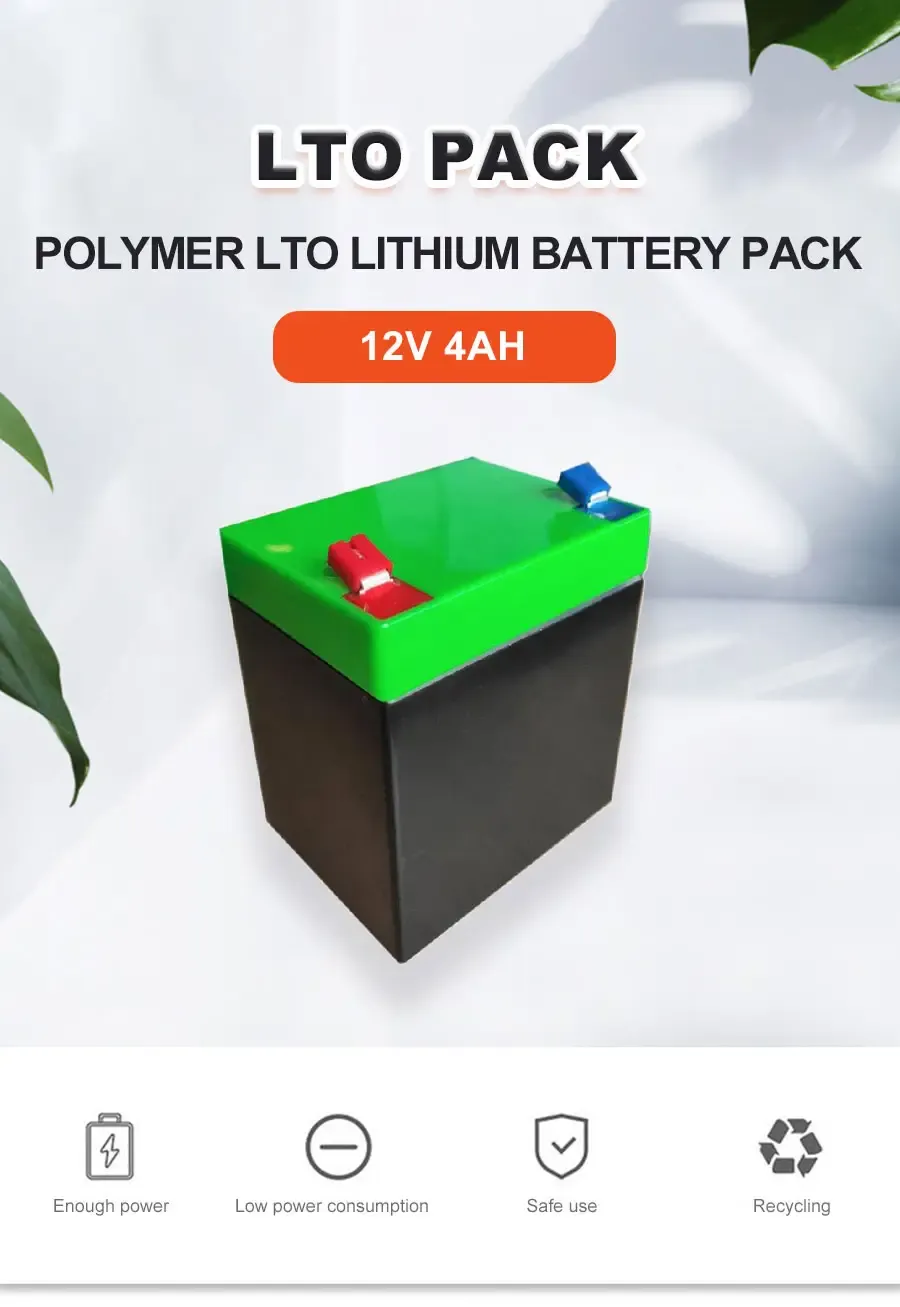

12v 4Ah deep cycle li-ion polymer lto lithium battery pack
See more pictures
Description:

FEATURES

Lithium Titanate (LTO): the Safest Lithium Technology.
Integrated Battery Management System (BMS).



PERFORMANCE

Long Cycle Life > [email protected]%DOD.
High Discharge Current,High Temperature Range.

Low Weight, Free Maintenance.

Fast Charging.

Environment Friendly.

Fill out our short form and we will be contacting you shortly to see we how can provide a solution to your needs!

- +
0
- +
0
- +
0

Product Detail
Feedback Now

12v 4Ah deep cycle li-ion polymer lto lithium battery pack

Deep cycle battery

Electrical Parameters

Nominal Voltage 12V
Rated Capacity 4Ah
Energy 48Wh
Resistance ≤65mΩ
Efficiency 0.99
Cycle Life >2000cycles @1C,80% DOD
Self Discharge 2% per Month
Max. Modules in Series/Parallel 4S/3P



Mechanical Parameters

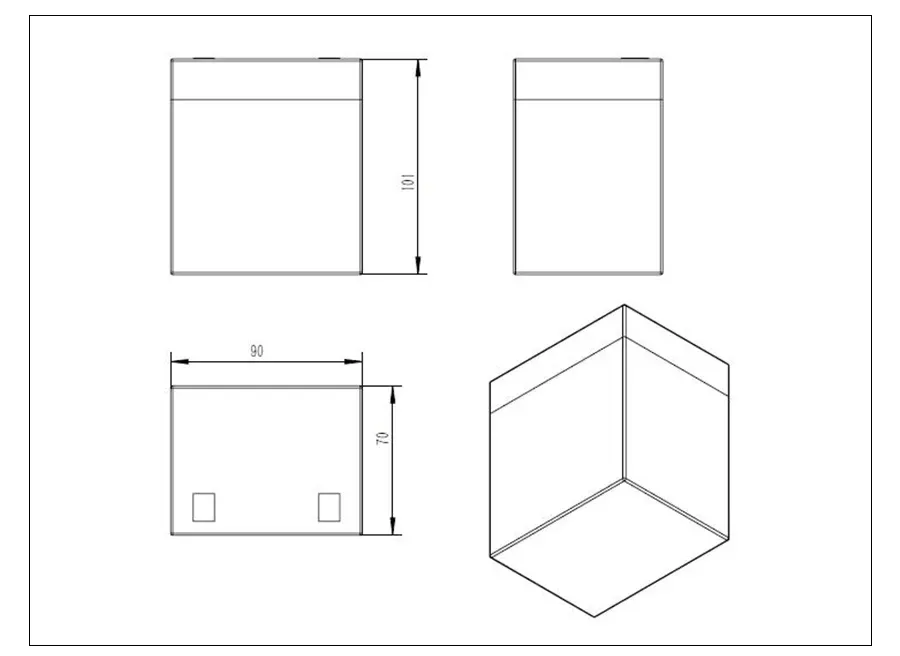

Dimension(L×W×H) 90x 70x 101mm
3.54 x 2.76x 3.98in
Weight 0.73kg
Terminal Type T1
Battery Housing ABS
Housing Protection IP56
Cell Type-Chemistry LTO Cell
SOC Display(Optional) /



Discharge Parameters

Continuous Discharge Current 20A
Pulse Discharge Current 40A(<30S)
Recommended Volt. Disconnect 8.5V
BMS Discharge Cut-off Voltage 8.5V
Reconnect Voltage 9V
Short Circuit Protection 250-500us



Charge Parameters

Charge Method CC-CV
Charge Voltage 14.4~14.8V
Recommended Float Voltage 13.75V
Recommended Charge Current 2A
Maximum Charge Current 12A
BMS Charge Cut-off Voltage 15V



Temperature Parameters

Discharge Temperature -40 to 75 ℃
Charge Temperature -40 to 75 ℃
Storage Temperature -40 to 75 ℃
BMS High Temperature Cut-off 78 ℃





NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
See User's Manual for Proper Operation.



Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
