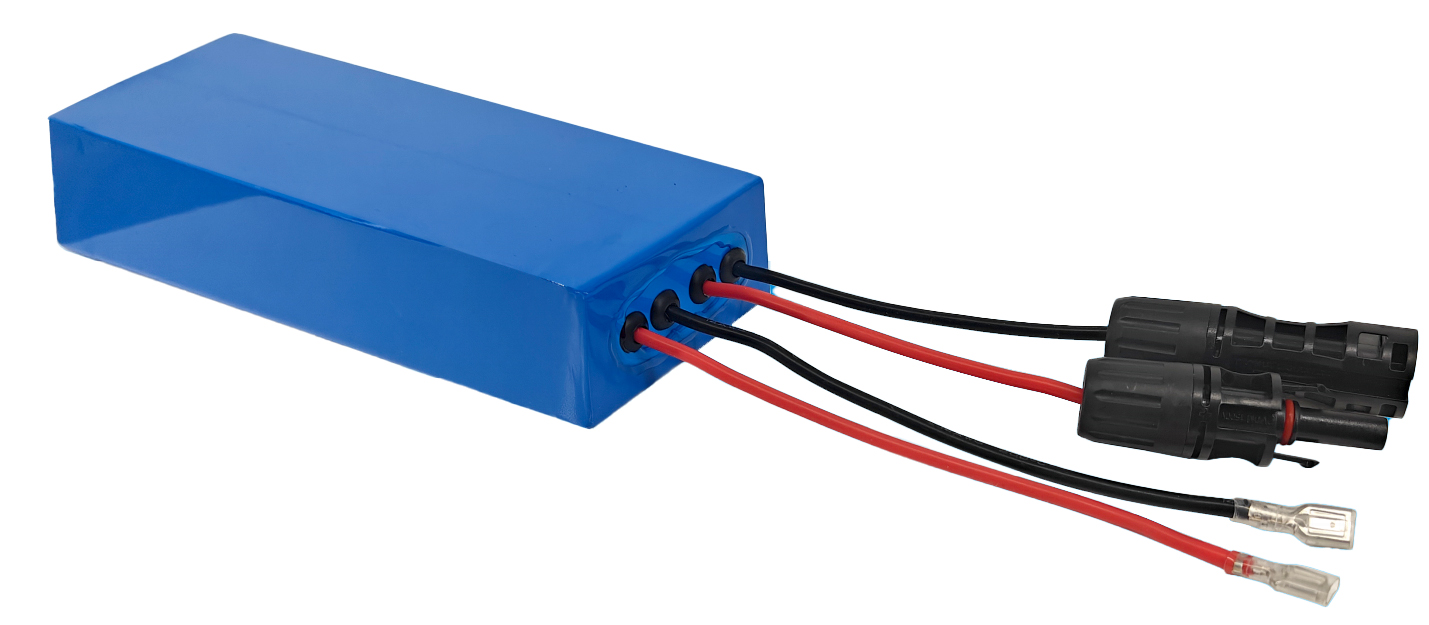

Lithium titanate battery LTO 24V 1.3Ah solar tracker battery
We take pride in delivering cutting-edge battery solutions meticulously engineered to power solar tracker systems. As the cornerstone of efficient solar energy generation, solar trackers play a pivotal role in maximizing output by automatically adjusting solar panels to precisely follow the sun’s daily trajectory. Equipped with our specialized power sources, these trackers operate with seamless precision, ensuring your solar installations achieve optimal energy capture at every hour of daylight. Our advanced battery technology is designed to withstand the dynamic demands of tracking systems, providing reliable performance that aligns with the sun’s movement. Whether for residential rooftops or large-scale commercial arrays, our solutions empower solar trackers to maintain consistent orientation, eliminating energy loss from suboptimal positioning. Trust in our expertise to deliver power solutions that enhance the efficiency, reliability, and longevity of your solar infrastructure—because every degree of sunlight matters in the pursuit of sustainable energy.FEATURES
Lithium Titanate (LTO) Technology: Harnessing the safest lithium-based solution for unparalleled reliability.Integrated Battery Management System (BMS): Ensures precise voltage, temperature, and charge control for optimal performance and safety.
Built-in MPPT Function: Maximizes power extraction from solar panels by adapting to real-time conditions.
Tailored for Solar Tracking Systems: Engineered to withstand the dynamic operational demands of solar tracking setups.
5-Year Warranty Coverage: Backed by a comprehensive warranty for long-term peace of mind.
PERFORMANCE
Exceptional Cycle Life: Exceeds 10,000 cycles with >80% remaining capacity at 25°C, under 1C/1C charge-discharge rates and 100% DOD.High-Density Design: Delivers robust discharge currents and operates across a wide temperature range.
Lightweight & Maintenance-Free: Reduces installation complexity while eliminating ongoing upkeep needs.
Rapid Charging Capability: Enables efficient energy replenishment for continuous tracking system operation.
Environmentally Friendly: Committed to sustainable practices with eco-conscious design and materials.
| Electrical Parameters |
| Nominal Voltage | |
| Rated Capacity | |
| Energy | |
| Resistance | |
| Efficiency | |
| Cycle Life(25℃，1C/1C,100% DOD) | ＞10000 cycles，Remaining capacity＞80% |
| Self Discharge | ＜5% per Month |
| Cell in Series/Parallel | 10S/1P |
| Mechanical Parameters |
| Dimension(W×D×H) | 205×71×35mm |
| Dimension(W×D×H) | 8.07''×2.80''×1.38'' |
| Weight | 0.9kg |
| Terminal Type | +，TE 2293255-1;-,TE5-160526-9,MC4 |
| Battery Housing | PVC |
| Housing Protection | IP20 |
| Cell Type-Chemistry | LTO Cell |
| NTC | UART(Voltage,Current,Temperature) |
| Discharge Parameters |
| Continuous Discharge Current | 4A |
| Pulse Discharge Current | 20A(＜1S) |
| Recommended Volt.Disconnect | 15V |
| BMS Discharge Cut-off Voltage | 17V |
| Reconnect Voltage | 18V |
| Short Circuit Protection | 200-500us |
| Charge Parameters |
| MPPT Range | DC16V~DC36V |
| Max.Input Current | 4A |
| BMS Charge Cut-off Voltage | 28.5V |
| Temperature Parameters |
| Discharge Temperature | -40℃ to 65℃ |
| Charge Temperature | -40℃ to 65℃ |
| Storage Temperature | 0℃ to 45℃ |
| BMS High Temperature Cut-off | 65℃ |
