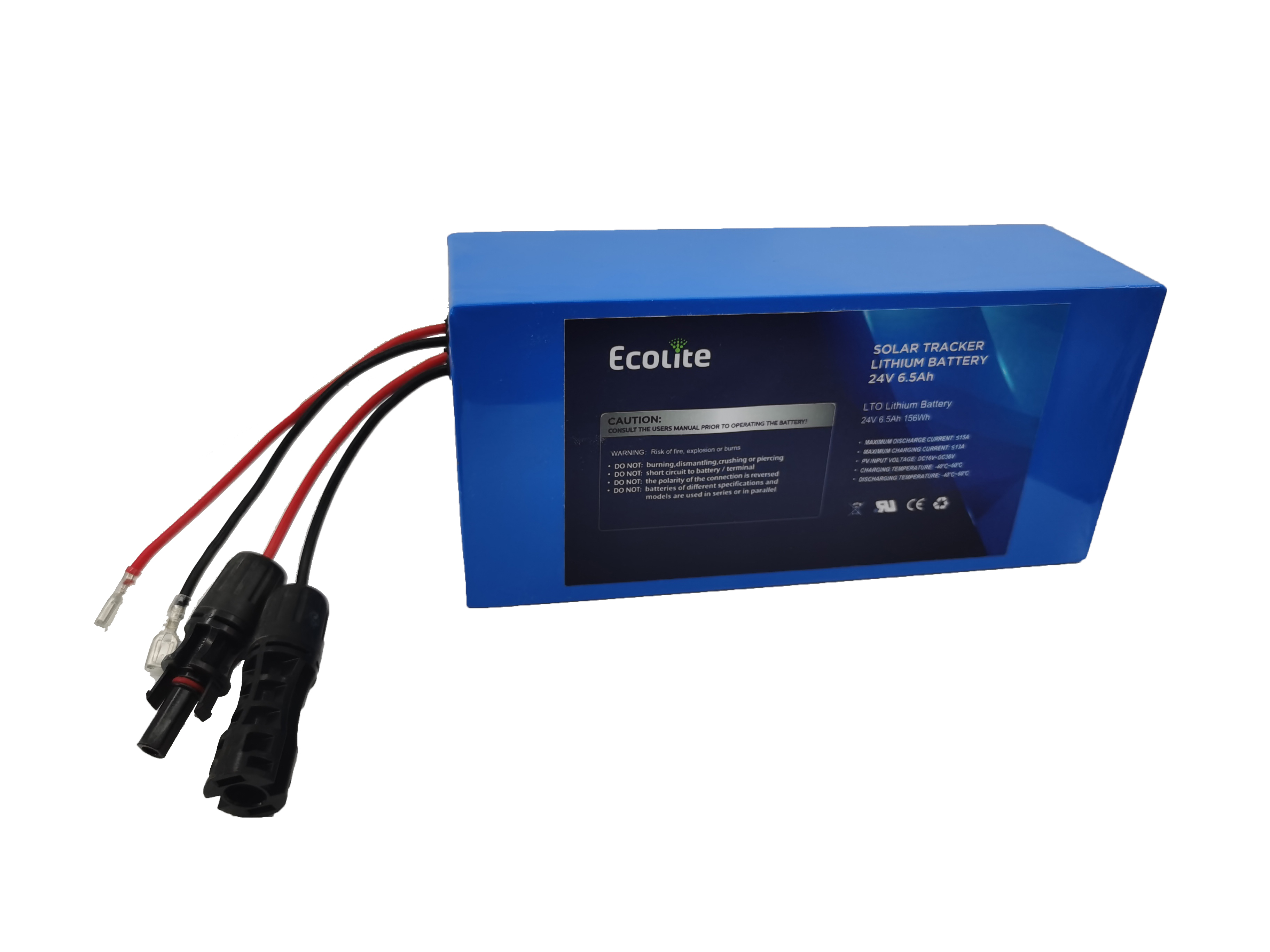

High Performance Lithium Titanate LTO battery 24V 6.5Ah
| Electrical parameters | |
| Nominal Voltage | 24V |
| Rated capacity | 6.5Ah |
| Energy | 156Wh |
| Resistance | ≤40mΩ |
| Efficiency | 0.98 |
| Cycle life(25℃,1C/1C,100%DOD) | >10000cycles,Remaining capacity>80% |
| Self Discharge | <5% per Month |
| Cell in Series/parallel | 10S/5P |
| Mechanical Parameters | |
| Dimension(W×D×H) | 225×105×75mm |
| Dimension(W×D×H) | 8.86''×4.13''×2.95'' |
| Weight | 2.6kg |
| Terminal Type | +,TE 2293255-1;-,TE5-160526-9,MC4 |
| Battery Housing | PVC |
| Housing Protection | IP20 |
| Cell Type-Chemistry | LTO Cell |
| Communication(Optional) | UART(Voltage,Current,Temperature) |
| Discharge Parameters | |
| Continuous Discharge Current | 15A |
| Pulse Discharge Current | 40A(1s) |
| Recommended Volt.Disconnect | 15V |
| BMS Discharge Cut-off Voltage | 17V |
| Reconnect Voltage | 18V |
| Short Circuit Protection | 200-500us |
| Charge Parameters | |
| MPPT Range | DC16V~DC36V |
| Max.Input Current | 8A |
| BMS Charge Cut-off Voltage | 28.5V |
| Temperature Parameters | |
| Discharge Temperature | -40℃ to 65℃ |
| Charge Temperature | -40℃ to 65℃ |
| Storage Temperature | 0℃ to 45℃ |
| BMS High Temperature Cut-off | 65℃ |
Engineered for solar tracking systems, our 24V 6.5Ah Lithium Titanate Oxide (LTO) battery combines lightweight design with extreme performance, setting new standards for reliability in renewable energy applications.
Lightweight Design for Effortless Handling
With a compact form factor, the battery ensures hassle-free transportation and rapid installation—ideal for remote or elevated solar tracker setups where mobility and ease-of-deployment are critical.
High Energy Density & Fast Charge/Discharge
Packed with high-energy density cells, it delivers consistent power while supporting rapid charging and discharging cycles. This efficiency maximizes energy capture for solar trackers, enabling seamless operation even in fluctuating sunlight conditions.
Extreme Temperature Resistance
Operates reliably across an ultra-wide temperature range:
-40°C to +65°C This resilience makes it perfect for harsh environments—from freezing northern climates to high-temperature desert installations—without compromising performance.
Robust LTO Technology: Superior cycle life and stability compared to conventional lithium batteries.
Instant Activation: Maintains optimal performance in extreme temperatures, eliminating downtime for temperature-related issues.
Low Maintenance: Designed for long-term reliability, reducing operational costs for solar farm management.
Ideal for solar tracking systems requiring consistent power in challenging environments, this battery ensures your solar panels stay aligned for maximum energy yield—day in, day out.
