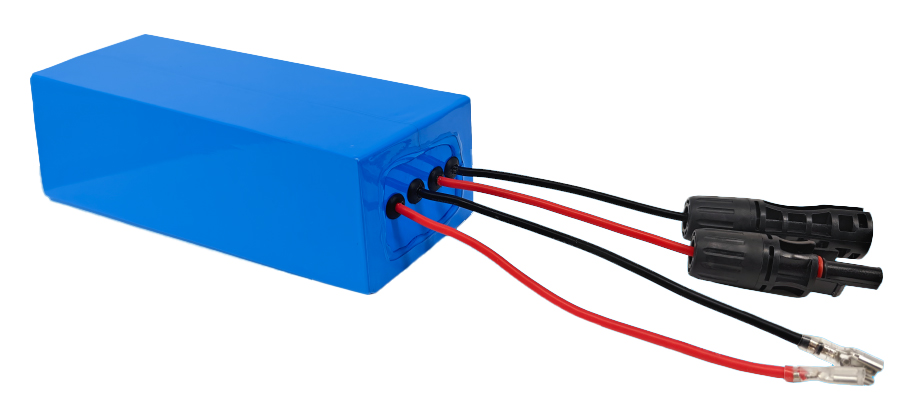

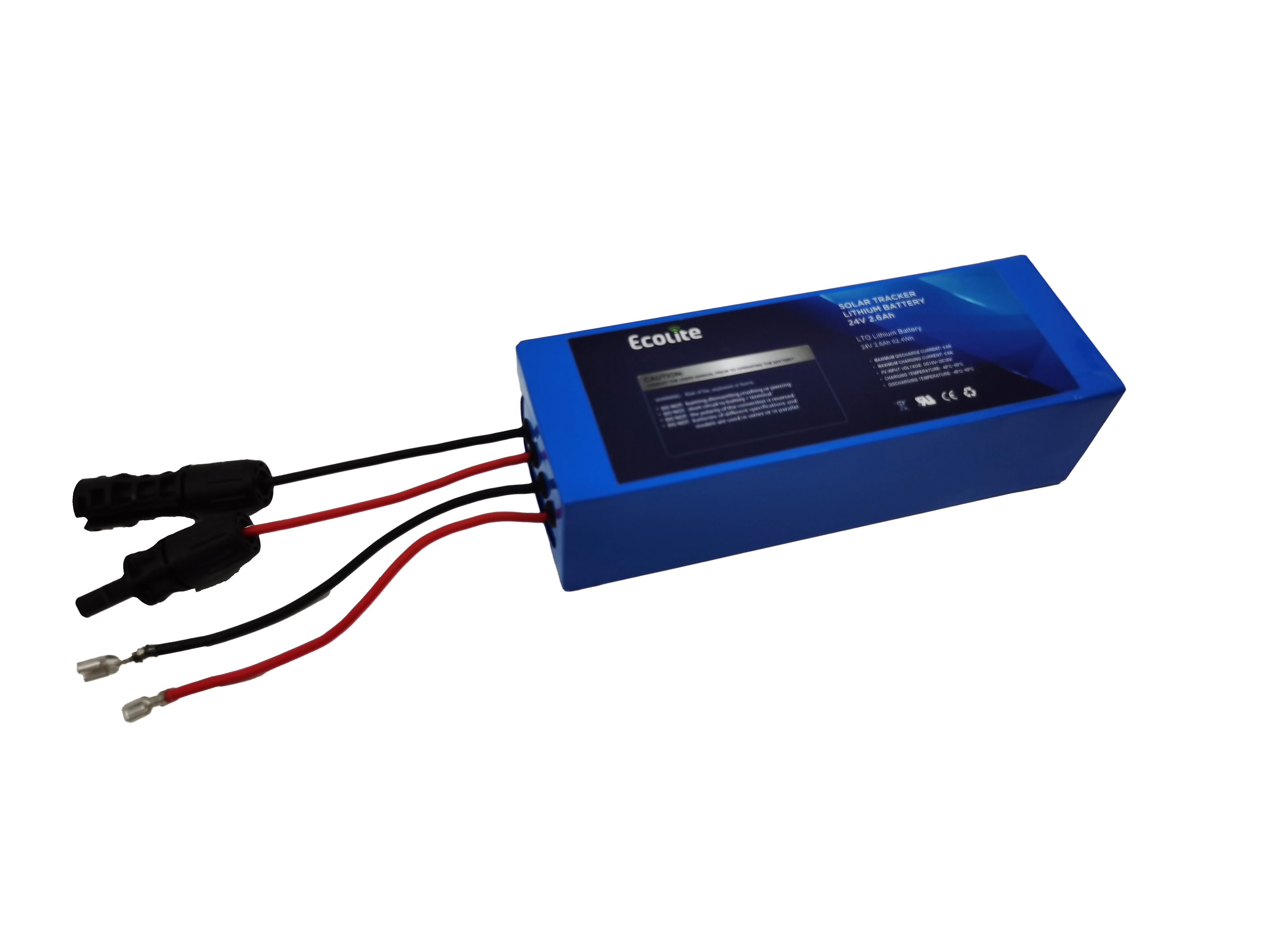

24V 2.6Ah LTO Lithium titanate solar tracker battery
Ecolite uses its own low-temperature resistant high-rate battery cells in lithium titanate solar tracker batteries to achieve high cycle times and wide temperature resistance performance, which can meet the power supply needs of photovoltaic trackers in various extreme environments.
FEATURES
Lithium Titanate (LTO) Technology: The industry’s safest lithium-based solution, engineered for unmatched reliability in critical applications.
Integrated Battery Management System (BMS): Advanced circuitry monitors voltage, temperature, and charge status to ensure optimal performance and safety.
Built-in MPPT Function: Maximizes power extraction from solar panels by dynamically adjusting to changing sunlight conditions.
Tailored for Solar Tracking Systems: Specifically designed to meet the dynamic power demands of solar trackers, enabling seamless sun-tracking efficiency.
5-Year Warranty: Backed by a comprehensive warranty for long-term peace of mind.
PERFORMANCE
Exceptional Cycle Life: Exceeds 10,000 cycles with over 80% remaining capacity at 25°C (1C/1C charge/discharge, 100% DOD), ensuring lasting durability.
High-Density Power Delivery: Delivers robust discharge currents and operates across a wide temperature range, ideal for harsh environments.
Lightweight & Maintenance-Free: Engineered for easy installation with zero upkeep required, reducing total cost of ownership.
Rapid Charging Capability: Minimizes downtime with fast recharge speeds, optimizing energy storage efficiency.
Eco-Friendly Design: Free from hazardous materials, aligning with sustainable energy goals for a greener footprint.
Electrical Parameters | |
Nominal Voltage | 24V |
Rated Capacity | 2.6Ah |
Energy | 62.4Wh |
Resistance | ≤ 70mΩ |
Efficiency | 0.98 |
Cycle Life(25'C,1C/1C,100% DOD) | >10000cycles,Remaining capacity>80% |
Self Discharge | <5% per Month |
Cell in Series/Parallel | 10S/2P |
Mechanical Parameters | |
Dimension(W×D×H) | 205×71×55mm |
Dimension(W×D×H) | 8.07“x2.80"x2.17" |
Weight | 1.2Kg |
Terminal Type | +,TE 2293255-1;-,TE5-160526-9,MC4 |
Battery Housing | PVC |
Housing Protection | IP20 |
Cell Type-Chemistry | LTO Cell |
Communication(Optional) | UART(Voltage,Current,Temperature) |
Discharge Parameters | |
Continuous Discharge Current | 8A |
Pulse Discharge Current | 25A(<1S) |
Recommended Volt. Disconnect | 15V |
BMS Discharge Cut-off Voltage | 17V |
Reconnect Voltage | 18V |
Short Circuit Protection | 200-500us |
Charge Parameters | |
MPPT Range | DC16V~DC36V |
Max.Input Current | 6A |
BMS Charge Cut-off Voltage | 28.5V |
Temperature Parameters | |
Discharge Temperature | -40°C to 65°C |
Charge Temperature | -40°C to 65°C |
Storage Temperature | 0℃ to 45℃ |
BMS High Temperature Cut-off | 65℃ |
