Features

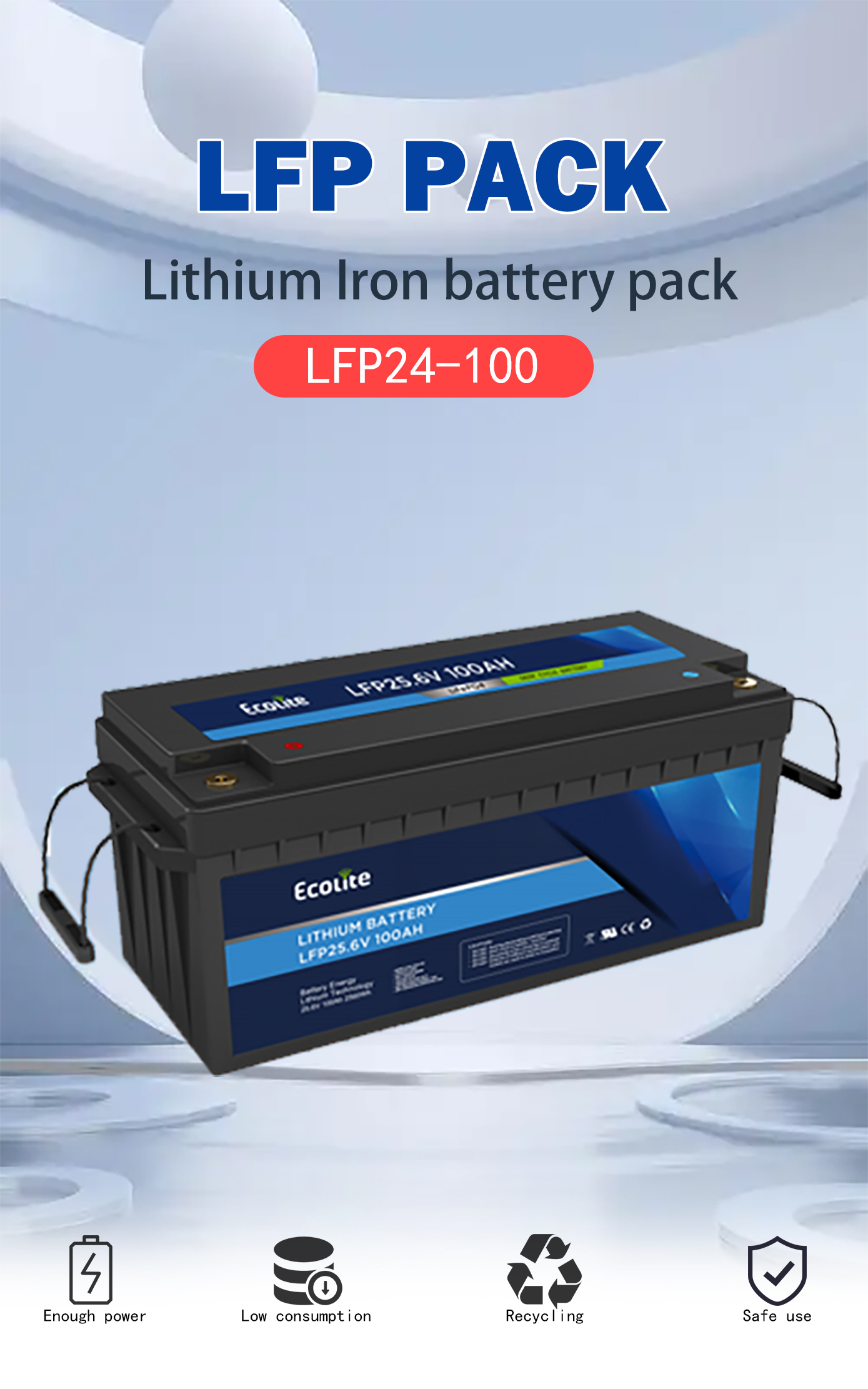

Lithium Iron Phosphate(LiFePO4).The Safest Lithium Technology.
Integrated Battery Management System(BMS).
Maximum support 4 in series or 4 in parallel.
Performance
Long Cycle Life>4000cycle@80%DOD。
High Density,High Discharge Current,High Temperature Range.
Low Weight,Free Maintenance.
Fast Charging.
Environment Friendly.

| Electrical Parameters | |
| Nominal Voltage | 25.6V |
| Rated Capacity | 100Ah |
| Energy | 2560Wh |
| Resistance | ≤45mΩ |
| Efficiency | ≥0.98 |
| Cycle Life | >4000cycles@1C,80%DOD |
| Self Discharge | <5% per Month |
| Max.Modules in Series/Parallel | 8S/1P |
| Mechanical Parameters | |

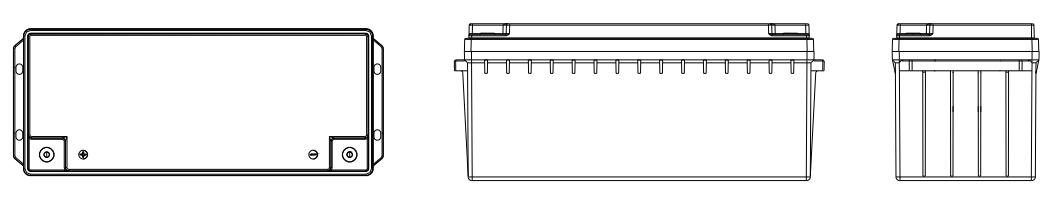

| Dimension(W×D×H) | 507×201.5×215mm |
| Dimension(W×D×H) | 19.96×7.93×8.46'' |
| Weight | 23kg |
| Terminal Type | M8 |
| Battery Housing | ABS |
| Housing Protection | IP65 |
| Cell Type-Chemistry | LiFePO4 Cell |
| Communication | Bluetooth |
| Discharge Parameters | |
| Continuous Discharge Current | 100A |
| Pulse Discharge Current | 150A(<10S) |
| Recommended Volt.Disconnect | 20V |
| BMS Discharge Cut-off Voltage | 20V |
| Reconnect Voltage | 21.6V |
| Short Circuit Protection | 300-800us |
| Charge Parameters | |
| Charge Method | CC-CV |
| Charge Voltage | 28.4-29.2V |
| Recommended Float Voltage | 26.6-26.8V@100% |
| Recommedned Charge Current | 50A |
| Maximum Charge Current | 100A |
| BMS Charge Cut-off Voltage | 29.6V |
| Temperature Parameters | |
| Discharge Temperature | -20℃ to 60℃ |
| Charge Temperature | 0℃ to 55℃ |
| Storage Temperature | -20℃ to 60℃ |
| Bms High Temperature Cut-off | 65℃ |




We provide full solution for your battery inquiry.One-stop service from battery design to delivery.

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: two year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
