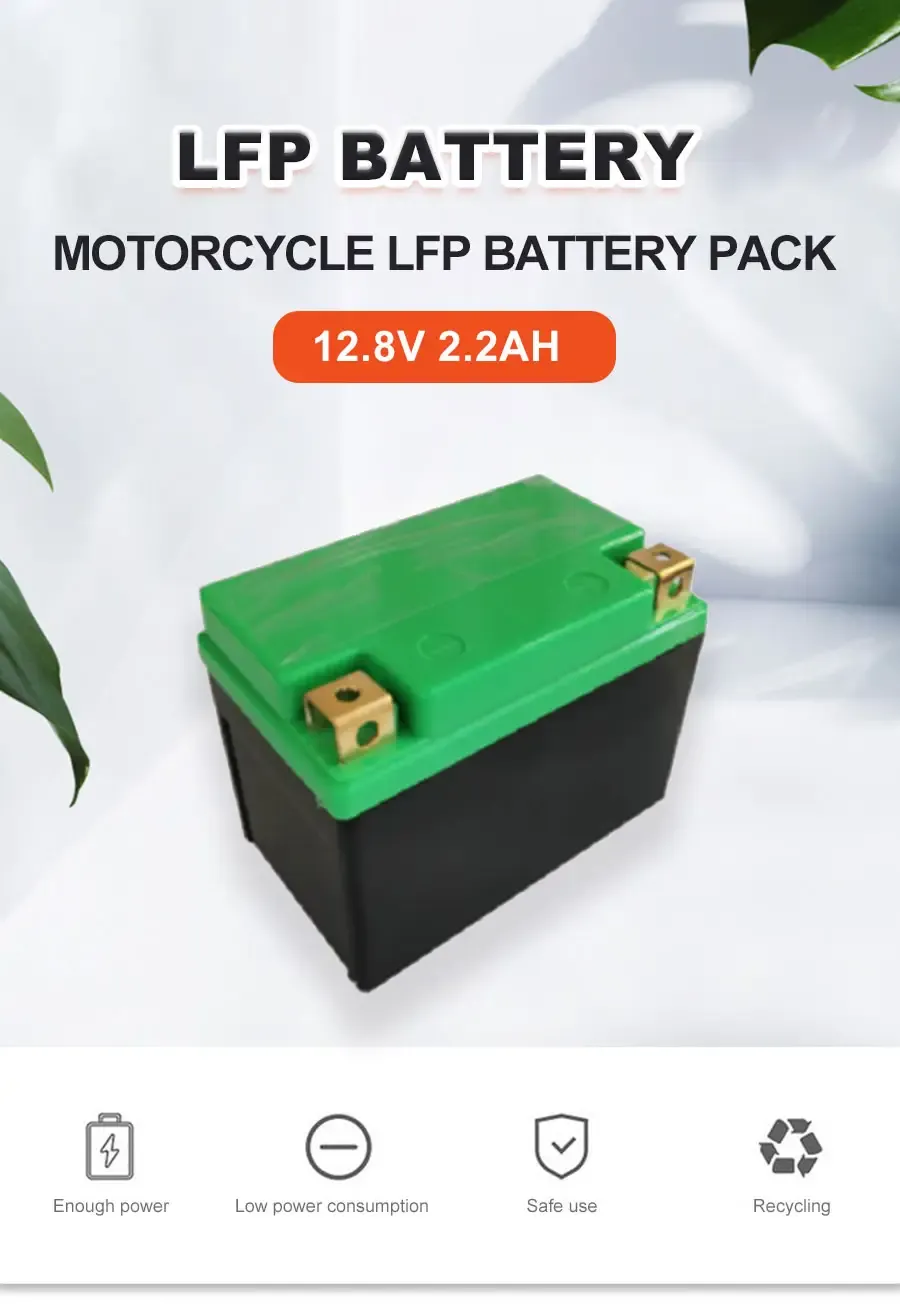

Motorcycle LFP battery pack 12.8V 2.2Ah
See more pictures
Description:

LiFePo4 battery pack FEATURES

(1),Lithium Iron Phosphate (LiFePO4):the Safest Lithium Technology.

(2),Integrated Battery Management System(BMS).

(3),Long Cycle Life>3000cycles@80%DOD.

(4),High Discharge Current,High Temperature Range. Low Weight,Free Maintenance.

(5),Fast Charging.

(6),Environment Friendly.

- +
0
- +
0
- +
0

Product Detail
Feedback Now

Motorcycle LFP battery pack 12.8V 2.2Ah

Electrical Parameters
Nominal Voltage 12.8V
Rated Capacity 2.2Ah
Energy 338Wh
Resistance ≤2.5mΩ
Efficiency 0.99
Cycle Life >3000cycles @1C,80% DOD
Self Discharge 2% per Month
Max. Modules in Series/Parallel 4S/1P
Mechanical Parameters
Dimension(L×W×H) 112*69*88mm
4.4*2.71*3.46"
Weight 0.5kg
Terminal Type N1
Battery Housing ABS
Housing Protection IP56
Cell Type-Chemistry LiFePO4 Cell
SOC Display(Optional) /
Discharge Parameters
Continuous Discharge Current 2.2A
Pulse Discharge Current 154(70C)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 8.8V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us
Charge Parameters
Charge Method CC-CV
Charge Voltage 14.4~14.4V
Recommended Float Voltage 13.4V
Recommended Charge Current 2.2A
Maximum Charge Current 8.8A
BMS Charge Cut-off Voltage 14.4V
Temperature Parameters
Discharge Temperature -20 to 60 ℃
Charge Temperature 0 to 45 ℃
Storage Temperature -20 to 45℃
BMS High Temperature Cut-off 78 ℃



Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.

Q: what is the warranty
A: 1year

Q: what is the lead time ?
A: Depends on your quantity

Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C

Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request

Q: accept OEM order ?
A: 100% customized solution for you .
