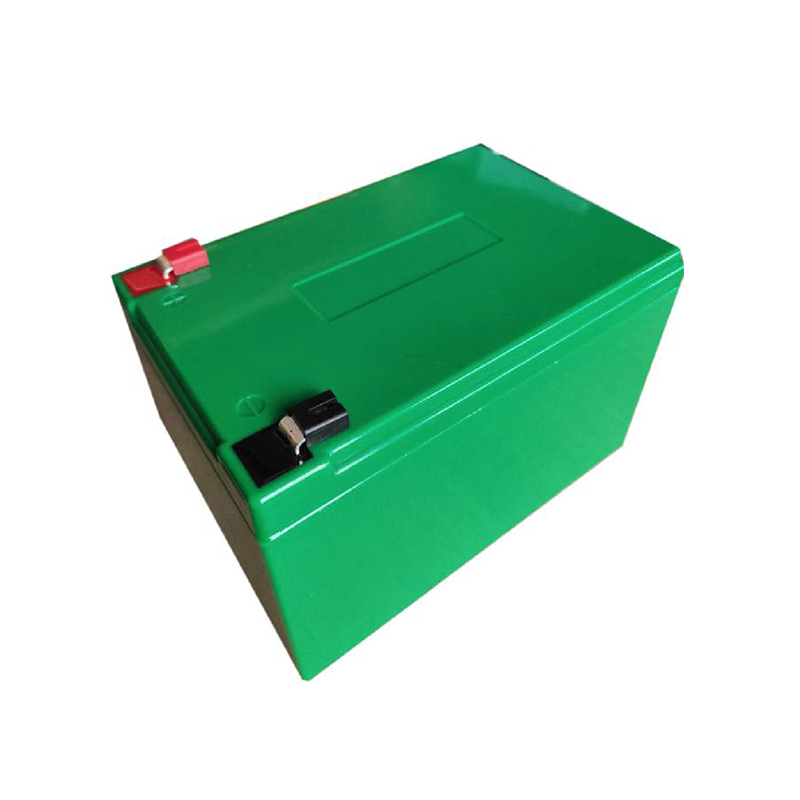

Long cycle life time 12v 9Ah li-ion battery ebike scooter
See more pictures
Description:

FEATURES

Lithium Titanate (LTO):the Safest Lithium Technology. Integrated Battery Management System(BMS).



PERFORMANCE

Long Cycle Life > 20000cycles@80%DOD. High Discharge Current,High Temperature Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.

    Product Detail
    Feedback Now

    Long cycle life time 12v 9Ah li-ion battery ebike scooter

    Electrical Parameters

    Nominal Voltage12V
    Rated Capacity9Ah
    Energy108Wh
    Resistance≤65mΩ
    Efficiency0.99
    Cycle Life>2000cycles @1C,80% DOD
    Self Discharge2% per Month
    Max. Modules in Series/Parallel5S/7P



    Mechanical Parameters

    Dimension(L×W×H)151×99×100mm
    5.94×3.9×3.93in
    Weight1.65kg
    Terminal TypeT1
    Battery HousingABS
    Housing ProtectionIP56
    Cell Type-ChemistryLTO Cell
    SOC Display(Optional)/



    Discharge Parameters

    Continuous Discharge Current45A
    Pulse Discharge Current80A(<1S)
    Recommended Volt. Disconnect8.5V
    BMS Discharge Cut-off Voltage8.5V
    Reconnect Voltage9V
    Short Circuit Protection250-500us



    Charge Parameters

    Charge MethodCC-CV
    Charge Voltage14.4~14.8V
    Recommended Float Voltage13.75V
    Recommended Charge Current4.5A
    Maximum Charge Current27A
    BMS Charge Cut-off Voltage15V



    Temperature Parameters

    Discharge Temperature-40 to 75 ℃
    Charge Temperature-40 to 75 ℃
    Storage Temperature-40 to 75 ℃
    BMS High Temperature Cut-off78 ℃

    NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
    See Ecolite User's Manual for Proper Operation.

    Q :Do you provide free sample ?
    A: Yes, a few pcs free sample can be provided, but freight will be charged

    Q: what is the warranty?
    A: one year

    Q:What is your payment term ?
    A: T/T,L/C

    Q:do you accepte OEM order ?
    A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

    Q :How many cells you can produce per month?
    A: 1.8million

    Q :What is the mode of transport?
    A: usually by sea

    Q:Which certificates do you have
    A:We have un38.3,MSDS…etc.
