lithium lifepo4 battery 12v 4.8Ah for ups system
See more pictures
Description:

FEATURES:

Lithium Iron Phosphate (LiFePO4):the Safest Lithium Technology.

Integrated Battery Management System(BMS).

PERFORMANCE:

Long Cycle Life > 4000cycles@80%DOD.

High Density,High Discharge Current,High Temperature Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.

- +
0
- +
0
- +
0

Product Detail
Feedback Now

lithium lifepo4 battery 12v 4.8Ah for ups system

Electrical Parameters

Nominal Voltage 12.8V
Rated Capacity 4.8Ah
Energy 61.4Wh
Resistance ≤30mΩ
Efficiency 0.99
Cycle Life >4000cycles @1C,80% DOD
Self Discharge 2% per Month
Max. Modules in Series/Parallel 4S/3P



Mechanical Parameters

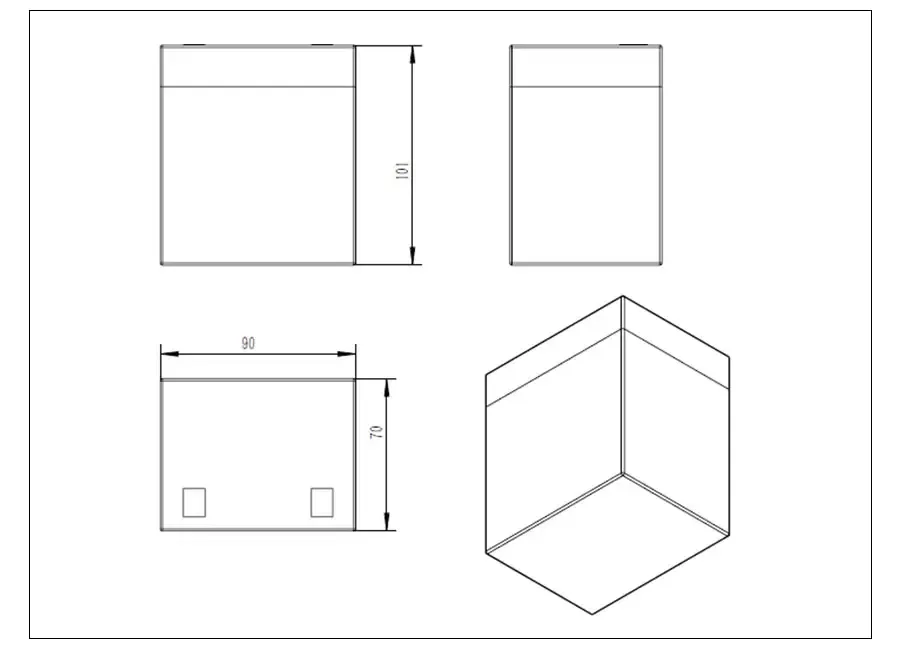

Dimension(L×W×H) 90x70x101mm
3.54 x 2.76x 3.98"
Weight 0.70kg
Terminal Type T1
Battery Housing ABS
Housing Protection IP56
Cell Type-Chemistry LFPCell
SOC Display(Optional) /



Discharge Parameters

Continuous Discharge Current 10A
Pulse Discharge Current 40A (<1S)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 8.8V
Reconnect Voltage 10.8V
Short Circuit Protection 250-800us



Charge Parameters

Charge Method CC-CV
Charge Voltage 14.4~14.8V
Recommended Float Voltage 13.8V
Recommended Charge Current 10A
Maximum Charge Current 10A
BMS Charge Cut-off Voltage 15V



Temperature Parameters

Discharge Temperature -20 to 60 ℃ (-4 to 14)
Charge Temperature 0 to 60 ℃ (32 to 140 ℉ )
Storage Temperature -40 to 70 ℃ (-40 to 158 ℉ )
BMS High Temperature Cut-off 78 ℃ (172.4 ℉ )

NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
See Ecolite User's Manual for Proper Operation.

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
