ECOLTO-T6015
See more pictures
Description:

Lithium Titanate(LTO)60V15.6Ah

- +
0
- +
0
- +
0

Product Detail
Feedback Now

information
Start a Free Product Chat

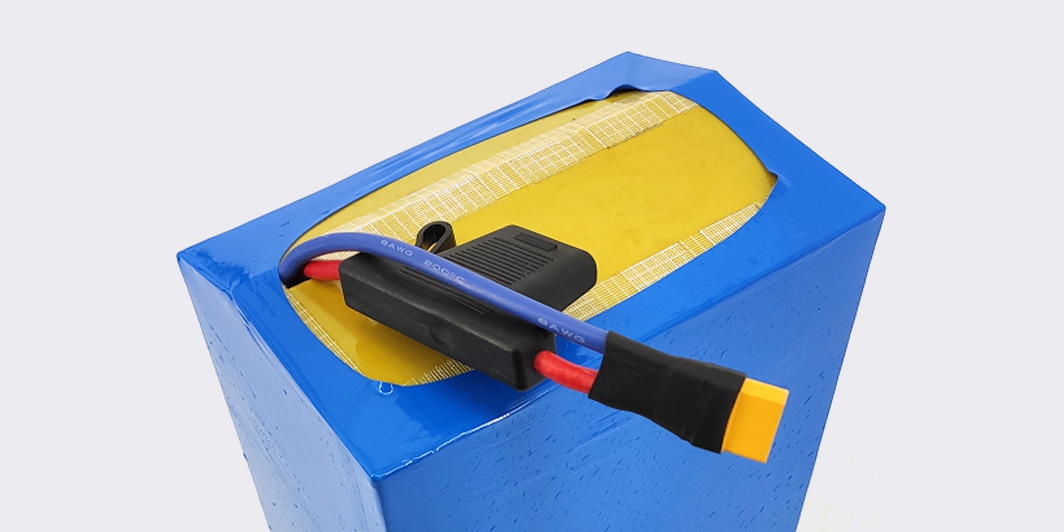

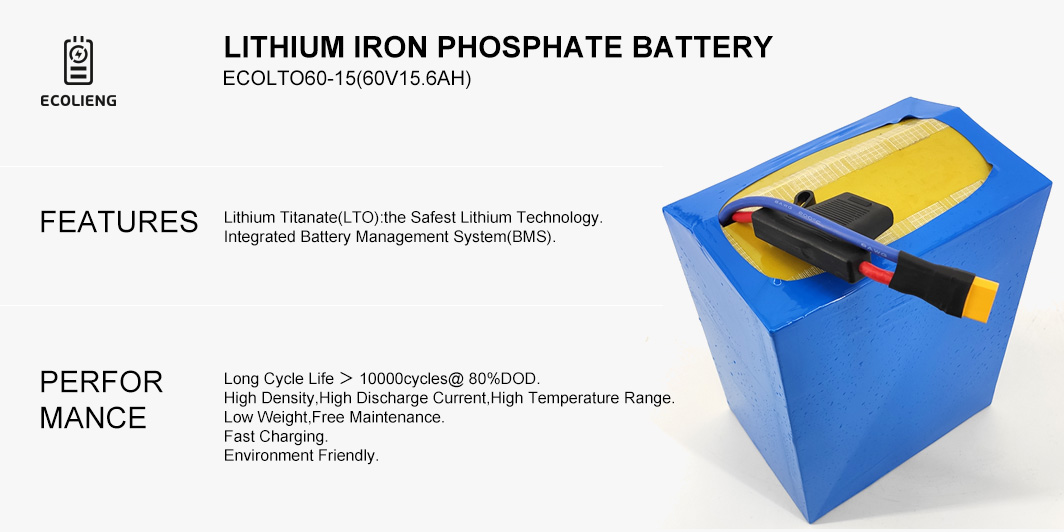

ECOLTO-T6015
Lithium Titanate Battery
1)Quick Details
Lithium Titanate(LTO)60V15.6Ah
2)Features
free manintenance, fast charging , high current , high denisity , life life time, safe technology
3)Application
e-bike, electric-motorcycle, two-three wheelers

Product Parameter
Start a Free Product Chat

Electrical Parameters Mechanical Parameters
Nominal Voltage 60V Dimension(L×W×H) 205x142x278mm
Rated Capacity 15.6Ah 8.07x5.59x10.94"
Energy 936Wh Weight 13.5kg
Resistance ≤ 40mΩ Terminal Type XT90 to 120AAnderson
Efficiency 0.99 Battery Housing Epoxy board+PVC
Cycle Life >10000cycles @1C,80% DOD Housing Protection IP20
Self Discharge 2% per Month Cell Type-Chemistry LTO Cell
Max. Modules in Series/Parallel 1P/25S SOC Display(Optional) /
Discharge Parameters Charge Parameters
Continuous Discharge Current 75A Charge Method CC-CV
Pulse Discharge Current 100A(<3S) Charge Voltage 68.75~71.25V
Recommended Volt. Disconnect 37.5V Recommended Float Voltage 68.75V
BMS Discharge Cut-off Voltage 42.5V Recommended Charge Current 15A
Reconnect Voltage 50V Maximum Charge Current 45A
Short Circuit Protection 200-500us BMS Charge Cut-off Voltage 71.25V
Temperature Parameters
Discharge Temperature -40 to 60 ℃
Charge Temperature -40 to 60 ℃
Storage Temperature -10 to 35℃
BMS High Temperature Cut-off 75 ℃

BATTERY DATA SHEET
